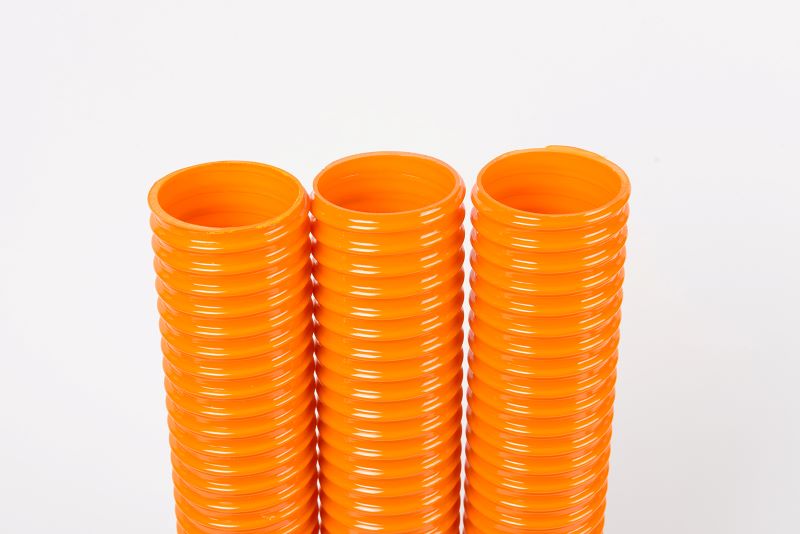

Light Duty Flexible Hose
Uses
-General conveyance
-Construction, public works, agriculture, ship building
Characteristics
-Light weight and excellent flexibility
-Smooth inner surface
-Outstanding pressure and wear resistance
Nominal Size
Inner Diameter
Outer Diameter
Roll Length
W.P at 20 °C
Minimum Bending Radius
mm
Inch
mm
mm
m
kg/cm²
mm
16
5/8
15.9 ± 0.5
21.1 ± 1.0
20
4.2
35
19
3/4
19.0 ± 0.5
24.8 ± 1.0
30
4.0
40
25
1
25.4 ± 0.5
30.4 ± 1.0
50
4.0
45
32
1 1/4
31.7 ± 0.5
37.6 ± 1.0
50
4.0
50
38
1 1/2
39.1 ± 0.5
44.4 ± 1.5
50
3.5
55
50
2
50.8 ± 1.0
59.1 ± 1.5
50
3.5
110
65
2 1/2
63.5 ± 1.0
73.1 ± 1.5
50
2.5
180
75
3
76.2 ± 1.0
87.5 ± 1.5
50
2.5
220
100
4
101.6 ± 1.5
116.6 ± 2.0
30
2.5
240
125
5
127.0 ± 1.5
142.4 ± 2.0
30
2.5
400
150
6
152.4 ± 1.5
168.0 ± 2.0
20
2.0
450
200
8
203.2 ± 1.5
223.8 ± 2.0
10
2.0
700
250
10
254.0 ± 2.0
276.7 ± 2.5
10
2.0
950
300
12
304.8 ± 2.0
223.1 ± 2.5
10
2.0
1000
